NUTR 2562 | Roller Follower Bearings | NUTR Series
Kjara Paskvaleti Džonson
$ 12.94

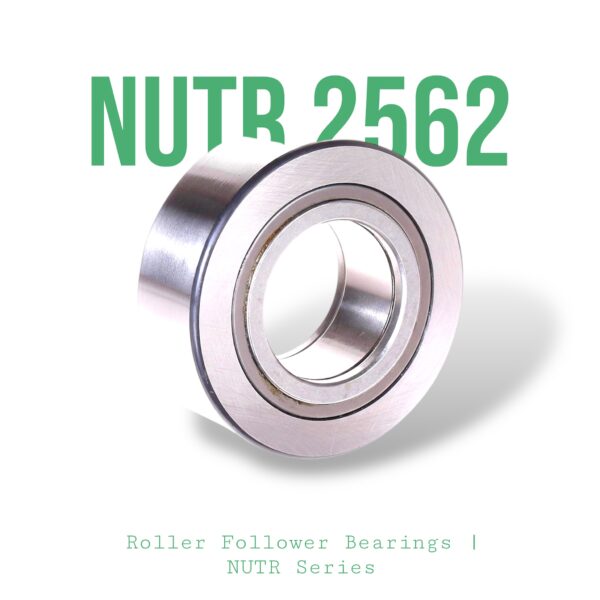

NUTR 2562 — Track Roller / Yoke‑Type Support Roller The NUTR 2562 is a yoke-type track roller bearing designed for heavy-duty industrial applications, such as cam-follower systems, conveyor guides, and linear motion tracks. It features a 25 mm inner bore, a 62 mm outer diameter, and an overall width of 25 mm, with a 24 mm wide outer ring. Internally, it uses a double-row, full-complement cylindrical roller configuration, providing excellent radial load capacity and resistance to shock. The outer ring has a crowned surface to accommodate minor misalignments, and the bearing comes sealed on both sides, often with provisions for relubrication. It has a basic dynamic radial load rating of approximately 35.8 kN and a static load rating around 48 kN, with a maximum recommended speed of roughly 3200 rpm when grease-lubricated. Its robust construction, high load tolerance, and sealed, ready-to-mount design make the NUTR 2562 ideal for demanding industrial environments requiring durability, reliability, and smooth rolling performance under heavy loads.
