Febco - 611-MJXMJ 10 - Part of the 611 Series
Kjara Paskvaleti Džonson
$ 95.79

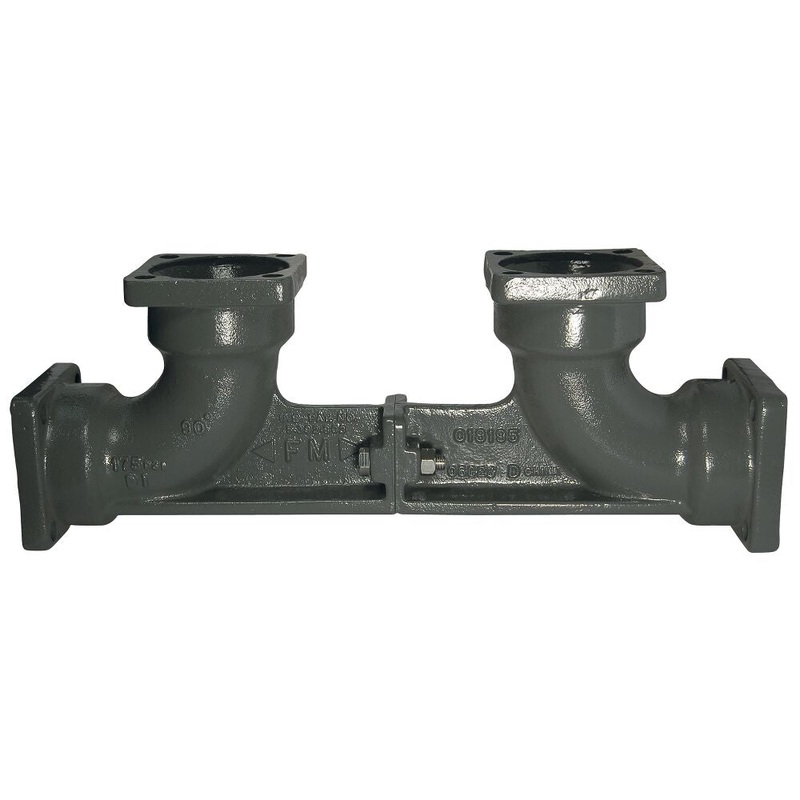

This 10 inch mechanical joint by mechanical joint valve setter is constructed of fusion epoxy coated ductile iron. It augments the installation of the MasterSeries N-pattern backflow preventer valve. Integral ductile iron supports between elbows transfer thrust downstream, eliminating thrust block requirements between elbows. The maximum working pressure is 175 psi (12.1 bar). Features Epoxy coated for longevity Mechanical joint connections For MasterSeries N shape Stainless steel fasteners Specifications Body Coating Type Fusion Epoxy Coated Body Material Ductile Iron Brand FEBCO Center Joint Bolt Material Stainless Steel Center Joint Nut Material Stainless Steel Diameter 10 IN EAN 643925015997 Inlet Connection Size 10 IN Inlet Connection Size-Metric 250 MM Inlet Connection Type Mechanical Joint Lead Free YES Maximum Working Pressure-BAR 12.10 Maximum Working Pressure-PSI 175 Outlet Connection Size 10 IN Outlet Connection Type Mechanical Joint Part Number 905333 Series 611 Temperature Range 32 to 140 degree F,0 to 60 degree C Specification Sheet – 611 F x F Specification Sheet – 611 MJ x F Specification Sheet – 611 MJ x MJ UPC – 643925015997
