Febco - 758A 4 - Part of the 758A Series

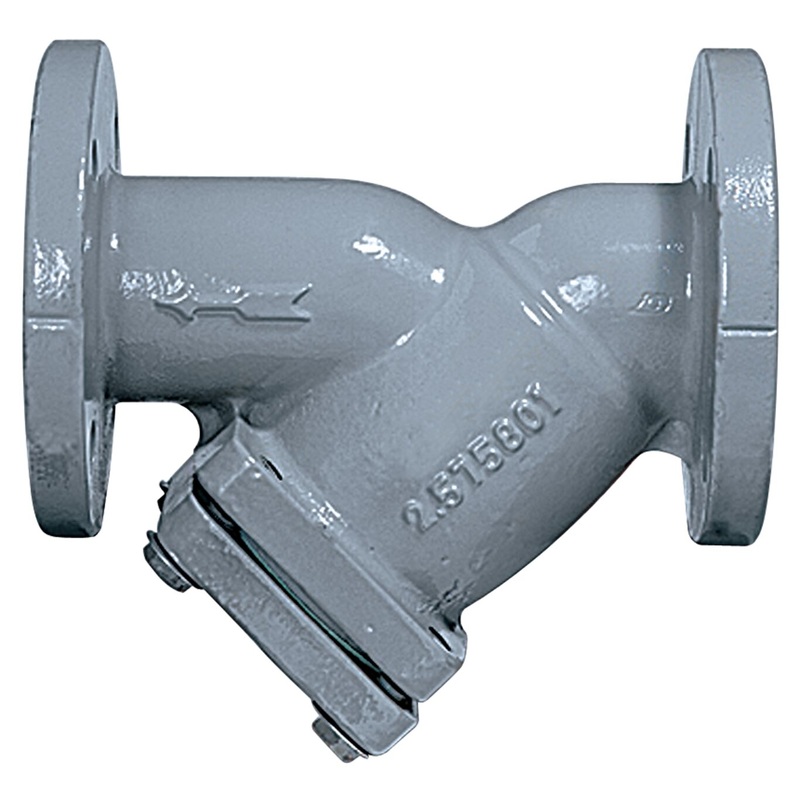

This 4 inch wye pattern strainer is installed in water piping systems to protect expensive equipment such as backflow preventers from damage or failure that can be caused by foreign material in the pipeline. It features a cast iron body, unplugged NPT blowoff connections that are situated on the cover, recessed screen seats that assure accurate screen alignment, and perforated 304 stainless steel screen. The working pressure is non-shock 200 psi at 150 degrees F (13.8 bar at 60 degrees C). Features Epoxy coated for longevity Tapped blow down port ANSI 150 pound flanged connections Stainless steel screen Specifications ArmorTek Technology No Blowdown Outlet Connection Flanged Joint Blowdown Outlet Size 1 1/2 IN Body Material Cast Iron Body Pattern Wye Brand FEBCO Class Rating 125 EAN 098268343298 Epoxy Coating Type Standard Gasket Material Non-asbestos Inlet Connection Size 4 IN Inlet Connection Type Flanged Joint Inlet Thread Type NPT Lead Free Not In Scope Maximum Operating Temperature-Fahrenheit 150 Maximum Pressure And Temperature 200 PSI and 150 Maximum Pressure-BAR 13.80 Maximum Pressure-PSI 200 Outlet Connection Size 4 IN Outlet Connection Type Flanged Joint Outlet Thread Type NPT Part Number 4327 Retainer Cover Material Carbon Steel Retainer Cover Type Tapped without Closure Plug Screen Material Stainless Steel Screen Size ONE_SIXTEENTH Series 758A Strainer Type Wye WOG Rating 200 PSI Specification Sheet – 758A UPC – 098268343298
