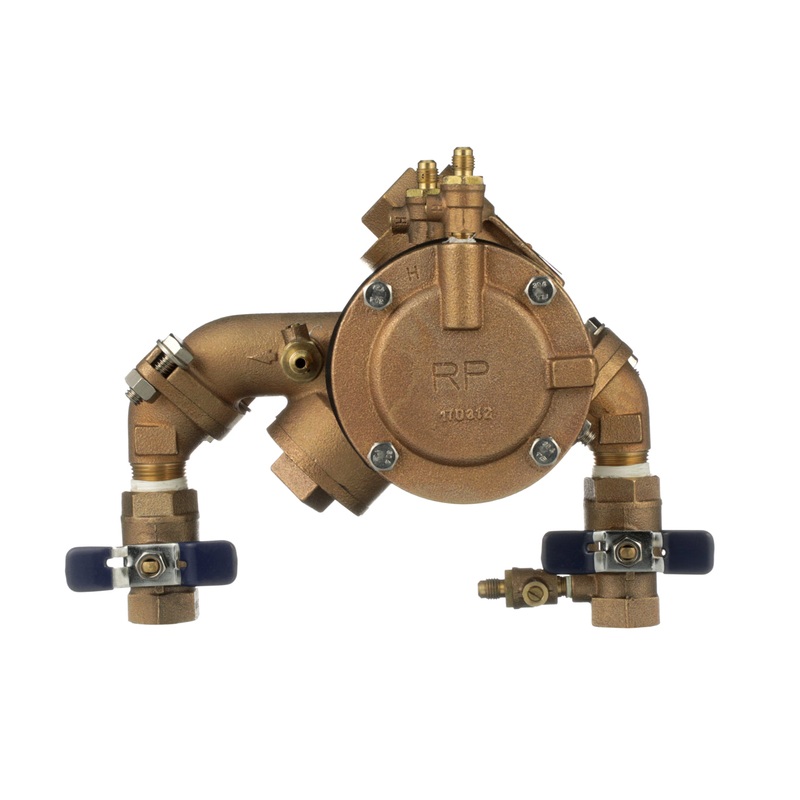

Febco - 825YA-QT 3/4 - Part of the 825YA Series

This 3/4 inch N shaped reduced pressure zone assembly backflow preventer is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This compact integral assembly with an extremely short lay length provides versatility and simplifies new and retrofit installations which are advantageous in areas of limited space. This assembly consists of a bronze body, threaded quarter turn ball valves, test cocks, spring loaded Y pattern check valves, and one hydraulically dependent differential relief valve. Features Bronze body construction for durability and long life Modular relief valve and check valves for easy maintenance Replaceable seat rings for longer valve life Integral flanged union connections allow assembly to be removed from the line for freeze protection or maintenance without the danger of spool substitution Meets all specifications of AWWA, ASSE Low head loss for optimum performance Quarter turn ball valves Reduces installation time, labor costs and materials Eliminates pipe elbows, nipples and unions from the installation Specifications ArmorTek Technology No Backflow Preventer Type Reduced Pressure Zone Assembly Body Finish Rough Bronze Body Material Bronze Body Pattern N-Pattern or Straight Brand FEBCO Buy American Act Compliant NO Bypass No Bypass Size Does Not Apply To Product Cap And Tether Yes Disc Material Does Not Apply To Product EAN 643925001716 Elbow Fitting Yes Hazard Protection Level Health Hazard Hot And Harsh Water No Hydrant Connection No Inlet Connection Size 3/4 IN Inlet Connection Size-Metric 20 MM Inlet Connection Type Female Threaded Inlet Shutoff Valve Type Quarter Turn Ball Valve Inlet Thread Type NPT Lead Free NO Maximum Temperature-Fahrenheit 140 Maximum Working Pressure-BAR 12.00 Maximum Working Pressure-PSI 175 Meter Type No Meter Minimum Temperature – Celsius 0.00 Minimum Temperature-Fahrenheit 32 Outlet Connection Size 3/4 IN Outlet Connection Type Female Threaded Outlet Shutoff Valve Type Quarter Turn Ball Valve Outlet Thread Type NPT Part Number 825DBV70 Polymer Coating No Pressure Operation Continuous Protection Type Backpressure and Backsiphonage Series 825YA Strainer No Technologies Does Not Apply To Product Tradename None Specification Sheet – 825YA Specification Sheet – 825YA (French) Specification Sheet – 825YA (Spanish) Specification Sheet – Flood Sensor Connection Kit – FEBCO Specification Sheet – Flood Sensor Connection Kit – FEBCO (French) Specification Sheet – Flood Sensor Connection Kit – FEBCO (Spanish) UPC – 643925001716
