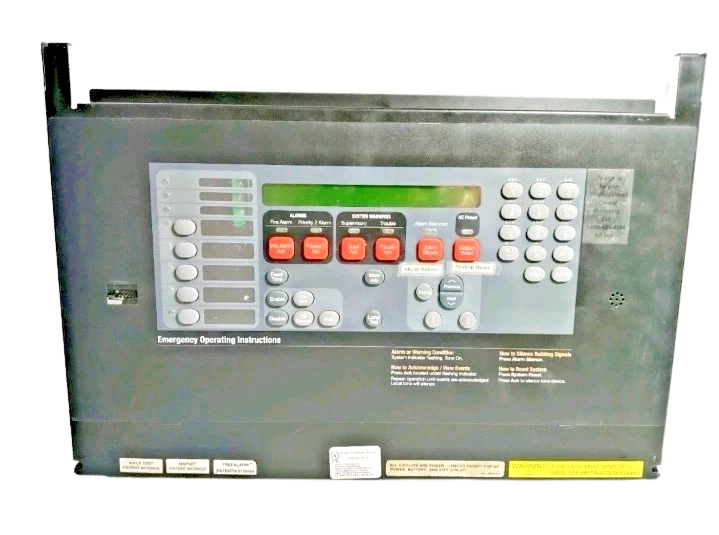

Simplex 4100‑9211 Fire Alarm Control Panel System – 220/240 V

Simplex 4100‑9211 Fire Alarm Control Panel System Description: The Simplex 4100–9211 is a fully addressable fire alarm control panel (FACP) made for medium- to large-sized buildings that need a reliable, centralized life-safety system. This 4100ES-family panel runs on 220–240 VAC and 50/60 Hz. It has a master controller, a system power supply, a battery charger, and an integrated IDNet network that can support hundreds of analog addressable devices in one configuration. The 4100-9211 is the main control panel for fire prevention systems in businesses, factories, and schools. It has an operator interface, programmable LEDs, NAC circuits, and support for remote annunciators.   Simplex 4100–9211 Details: Model number: 4100‑9211 – 220–240 VAC Fire Alarm Control System / Master Controller (Simplex). Voltage input: 220–240 VAC, 50/60 Hz main power with 24 VDC battery‑backup path. System type: Addressable fire detection and control panel for TrueAlarm and compatible IDNet devices. Backup power: Supports sealed lead‑acid batteries (typically up to 115 Ah) via onboard 9 A battery charger. Communication: IDNet addressable network interface (250 point capacity) plus Remote Unit Interface (RUI) port for remote annunciators and network modules   4100‑9211 Master Controller Tech Specs Parameter Value Model 4100‑9211 Fire Alarm Control Panel – 220/240 VAC  Input line power 220–240 VAC, 50/60 Hz (UL listed for 204–264 VAC range)  System power supply & charger Integrated 9 A system power supply / battery charger  Battery backup Supports sealed lead‑acid batteries up to ~115 Ah; 24 VDC system voltage  IDNet capacity Supports up to 250 addressable points on IDNet wiring  NAC outputs 3 Notification Appliance Circuits (Class A/B, pon‑ramp‑style)  Auxiliary relay / output Programmable auxiliary relay (alarm/notifier/zone)  Remote annunciators Supports remote units via RUI (remote unit interface) communications  Panel interface Integrated operator interface with LCD, LEDs, manual controls, labels Industry Applications: 1) Multi-story office and commercial buildings that need centralized fire alarm management at 220/240 V. 2) Hospitals, labs, and schools where diagnosis and silencing/resetting of addressable devices are very important. 3) Industrial plants, warehouses, and factories that demand strong 220–240 V wiring and high-current NACs. 4) High-rise apartment buildings with remote alarms on each floor to show where the fire is.
