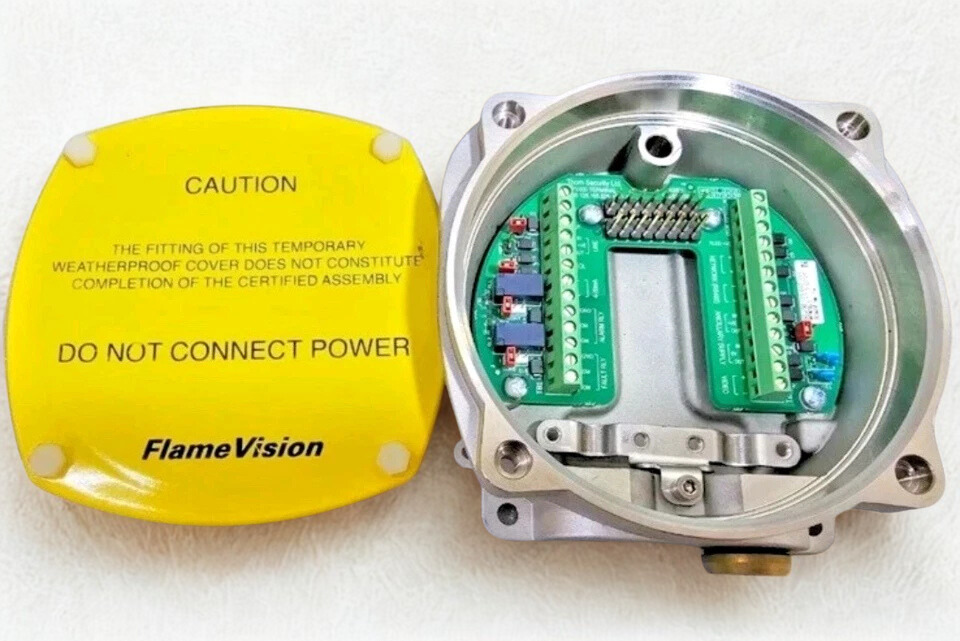

Tyco Flame Vision FV411F Triple IR Flame Detector

The Tyco Flame Vision FV411F (Nuovo Senza Scatola) is a flame detector that works well for finding hydrocarbon fires, especially in industrial and marine settings. It is part of the FV400 series and refers to the model without a built-in camera (FV411f). This model is best for situations where visual confirmation is not needed. Technical Specification: Parameter Specification Model FV411f (no camera) Series FLAMEVision FV400 Detection Technology Triple IR solar blind Detection Range Up to 65 m (0.1 m² n-heptane pan fire) Field of View 90° H, 85° V Supply Voltage 15-30 Vdc Current Consumption 12 mA quiescent, 22 mA alarm (24 Vdc) Weight 4 kg Dimensions 155.5 mm H x 153 mm W x 92 mm D Enclosure Material Stainless steel 316L Detection Window Sapphire Gland Entry 2 x M20 Operating Temperature -40°C to 80°C Storage Temperature -40°C to 80°C Relative Humidity 99% (non-condensing) IP Rating IP66 Flameproof Certification ATEX, IECEx, FM EN54 Approval EN54-10:2002 A1:2005   Tyco Flame Vision Fv411F Key Features -> Triple IR sun blind sensing system for reliable and highly sensitive flame detection. ​ -> For a 0.1 m² n-heptane pan fire, the detection range is up to 65 meters. ​ -> Automatic monitoring of the optical route and built-in flame simulation to lower maintenance expenses. ​ -> A wide field of view: 90° horizontally and 85° vertically. ​ -> Immunity to false alarms and the capacity to see fires through thick clouds of solvent fumes and black smoke. ​ -> There are four field interfaces: a 4–20 mA current loop, an MX loop, a MODBUS (RS485) loop, fire and fault relays, and a standard interface. ​ -> Optional video verification with a built-in flameproof camera (not included in the FV411f variant).   Where to Use? Designed for environments with high risk of hydrocarbon fires, such as petrochemical plants, refineries, and marine installations.​ The FV411f model does not include an integrated camera, making it suitable for applications where only flame detection is required, without the need for visual confirmation.​ The detector is highly configurable, with options set via DIP switches and advanced settings via FV Consys software.
