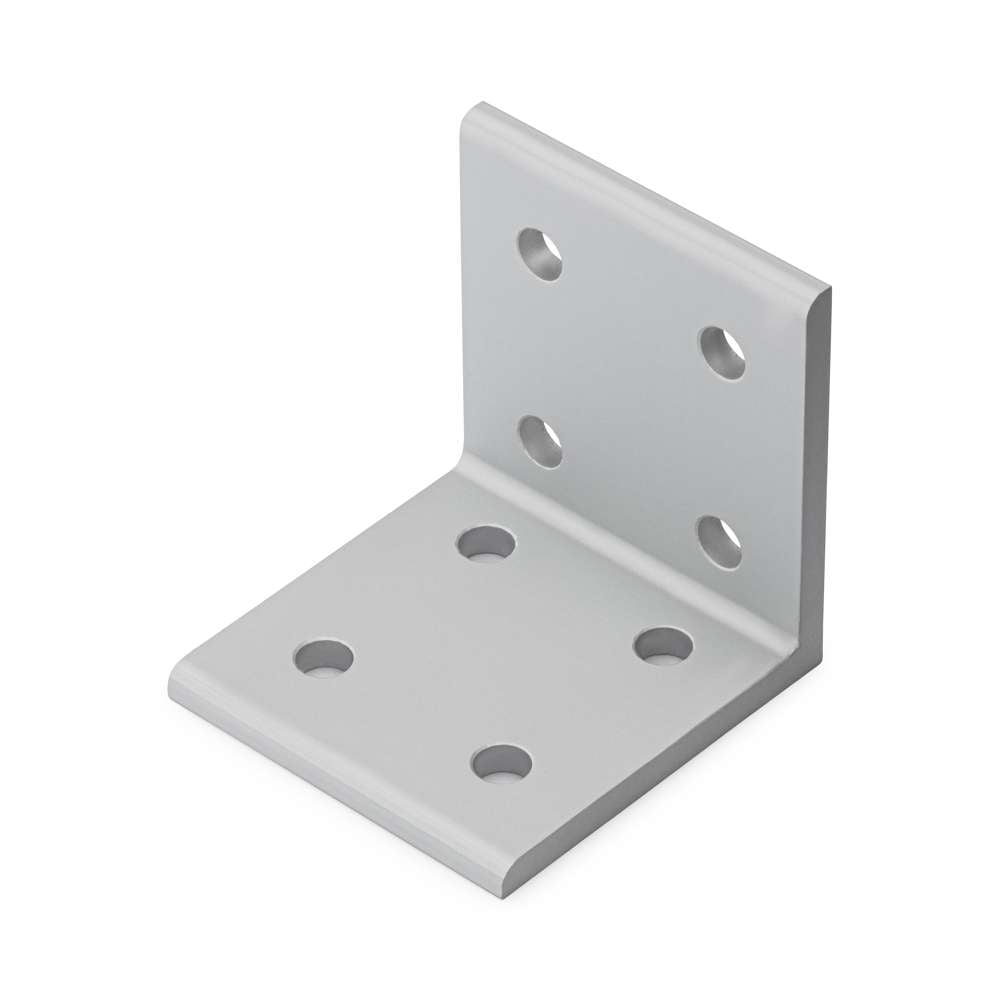

80×80 40 Series Universal Corner Bracket

$ 12.96

UPC: N/A Category: Thread

80×80 40 Series Universal Corner Brackets provide a strong and flexible solution for creating secure 90-degree joints in aluminium extrusion assemblies. Designed for high shear and moment resistance, these brackets offer high structural integrity of frameworks without requiring any machining. Their universal design allows them to be mounted either parallel or perpendicular to the extrusion slot, and they do not have to be used solely for extrusion-to-extrusion connections. This versatility makes them ideal for a wide range of applications, from machine enclosures to industrial workstations, ensuring a reliable and durable connection. Pros and Cons Universal Corner Brackets for adjustable and strong aluminium extrusion assemblies. Pros Cons No Machining Required: Simplifies assembly by eliminating the need for complex modifications to the extrusion. High Shear and Moment Resistance: Provides strong, stable connections for demanding applications. Adjustable: Allows for flexibility and easy reconfiguration in your design. Universal Mounting: Parallel or perpendicular to the slot and not limited to extrusion-to-extrusion use. Time Consuming: Requires additional fastening steps compared to some other connectors. Visible Fixing: Bracket and fixings remain exposed in finished assemblies Protrudes into Internal Frame Space: May limit the ability to place components, panels, or doors within the frame. Application Universal Corner Brackets are designed for use with 40 Series T-Slot Aluminium Extrusions to create strong and stable 90-degree connections. These brackets offer excellent shear and moment resistance, making them suitable for high-strength structural frameworks, machine enclosures, and modular assemblies. Their adaptability ensures a reliable connection in various configurations while maintaining ease of assembly and long-term durability.
