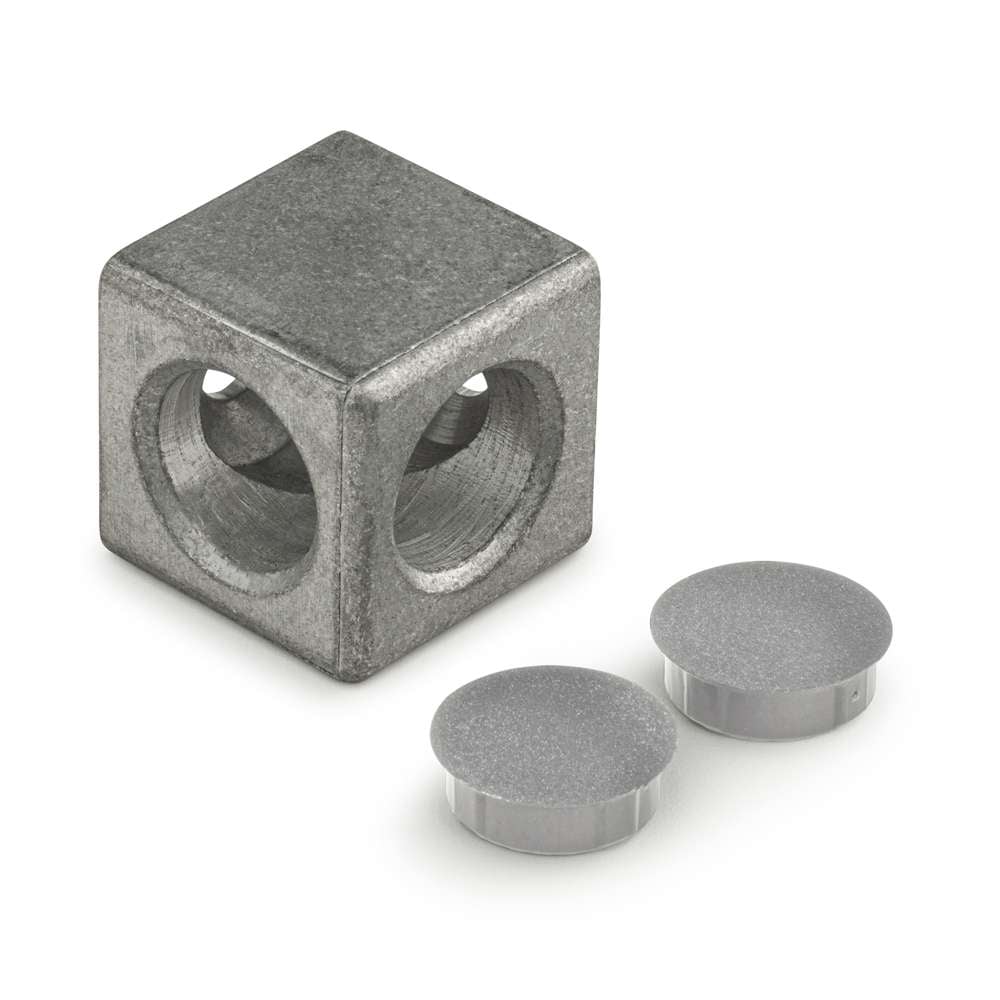

2 Way 20 Series Cube Corner Bracket

$ 4.65

UPC: N/A Category: Thread

2 Way 20 Series Cube Corner Brackets provide a a strong, efficient, and aesthetically refined solution for creating secure 90-degree joints in aluminium extrusion assemblies. Designed for high shear resistance with medium moment and low torsional resistance, these brackets ensure secure and stable connections while leaving the extrusion slots completely clear for additional components or panels. Their included cover cap conceals fixings, enhancing the appearance of the assembly while also making it easier to clean. Cube Corner Brackets enable faster assembly but require the ends of extrusions to be tapped for installation. Pros and Cons Cube Corner Brackets for efficient, strong and clean-finish aluminium extrusion assemblies. Pros Cons Quick Assembly: Fast assembly process compared to other corner brackets. High Shear Resistance: Provides a secure and stable joint for structural applications. Leaves Extrusion Slots Clear: Allows full access to slots for additional components or panels. Concealed Fixings: Cover caps hide fasteners, creating a clean and professional finish. Machining Required: Ends must be pre-tapped for installation. Less Flexible: Fixed positioning compared to other corner brackets. Medium Moment & Low Torsional Resistance: Not suitable for applications requiring maximum load distribution or twist resistance. Application Cube Corner Brackets are designed for use with 20 Series T-Slot Aluminium Extrusions to create strong and efficient 90-degree connections. Their high shear strength and fast assembly make them ideal for industrial frameworks, modular workstations, and enclosures. Unlike other corner brackets, they leave the extrusion slots completely clear, allowing for unrestricted mounting of panels, accessories, or additional structural components. The included cover caps provide a polished finish and help maintain a clean assembly.
