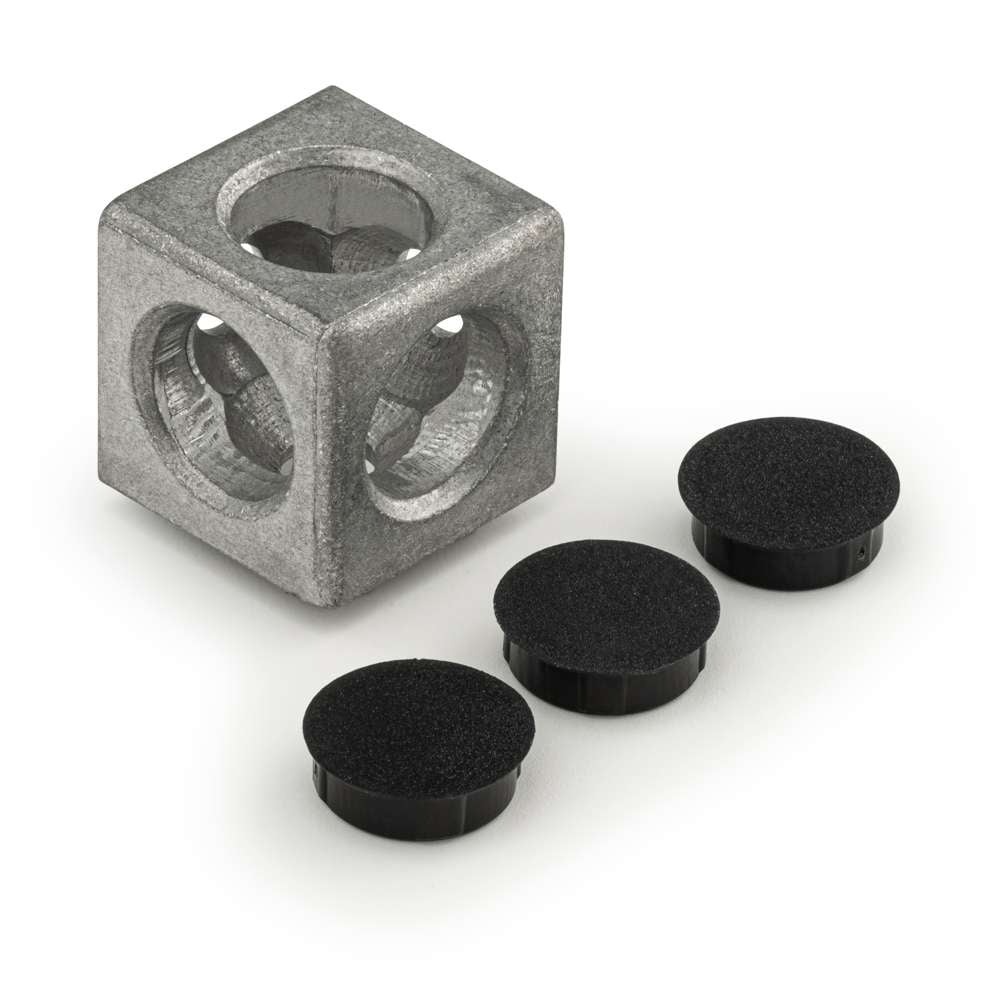

3 Way 45 Series Cube Corner Bracket

$ 8.51

UPC: N/A Category: Thread

3 Way 45 Series Cube Corner Brackets provide a a strong, efficient, and aesthetically refined solution for creating secure 90-degree joints in aluminium extrusion assemblies. Designed for high shear resistance with medium moment and low torsional resistance, these brackets ensure secure and stable connections while leaving the extrusion slots completely clear for additional components or panels. Their included cover cap conceals fixings, enhancing the appearance of the assembly while also making it easier to clean. Cube Corner Brackets enable faster assembly but require the ends of extrusions to be tapped for installation. Pros and Cons Cube Corner Brackets for efficient, strong and clean-finish aluminium extrusion assemblies. Pros Cons Quick Assembly: Fast assembly process compared to other corner brackets. High Shear Resistance: Provides a secure and stable joint for structural applications. Leaves Extrusion Slots Clear: Allows full access to slots for additional components or panels. Concealed Fixings: Cover caps hide fasteners, creating a clean and professional finish. Machining Required: Ends must be pre-tapped for installation. Less Flexible: Fixed positioning compared to other corner brackets. Medium Moment & Low Torsional Resistance: Not suitable for applications requiring maximum load distribution or twist resistance. Application Cube Corner Brackets are designed for use with 45 Series T-Slot Aluminium Extrusions to create strong and efficient 90-degree connections. Their high shear strength and fast assembly make them ideal for industrial frameworks, modular workstations, and enclosures. Unlike other corner brackets, they leave the extrusion slots completely clear, allowing for unrestricted mounting of panels, accessories, or additional structural components. The included cover caps provide a polished finish and help maintain a clean assembly.
Brand
Need this Tool Customized?

Brand

LMT

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.

Common Tool Customization Options

Diameter and OD Modifications

We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.

Bore Modifications for Saw Blades

Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.

Length Adjustments

Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.

Shank Modifications

Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.

Radius, Chamfer, and Corner Changes

We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.

Step Tool Modifications

For applications that require multiple diameters or operations in a single tool, we can create or modify step tools to help reduce tool changes and improve production efficiency.

Flute and Cutting Edge Adjustments

Depending on the tool and application, flute length, cutting edge geometry, end cutting features, relief angles, and cutting edge shape may be modified to improve chip evacuation, cutting action, and tool performance.

Regrinding and Resharpening

Many cutting tools can be reground or resharpened to restore performance, extend tool life, and reduce replacement costs.

Custom Profiles and Special Forms

For unique part features, we can help provide special forms, custom profiles, custom radii, counterbores, countersinks, keyseat cutters, form tools, and other application-specific tooling solutions.

Material-Specific Tool Adjustments

We can help modify or recommend tooling based on the material being machined, including aluminum, brass, bronze, plastics, stainless steel, hardened steel, cast iron, composites, and other industrial materials.

Have a Drawing, Sample, or Part Print?

Send us your print, sketch, CAD file, photo, tool number, sample, or application details. For the fastest quote, include the material being cut, quantity needed, required dimensions, tolerances, and any machine or holder requirements.

Coating Options

Tool coatings can be selected or added to improve wear resistance, heat resistance, lubricity, and performance in specific materials such as steel, stainless steel, aluminum, cast iron, and high-temperature alloys.

Request a Custom Tool Modification

Need this tool changed for your application? Contact General Cutting Tools today to discuss your custom tooling needs. We can help you find the right solution for your machine, material, and production goals.
