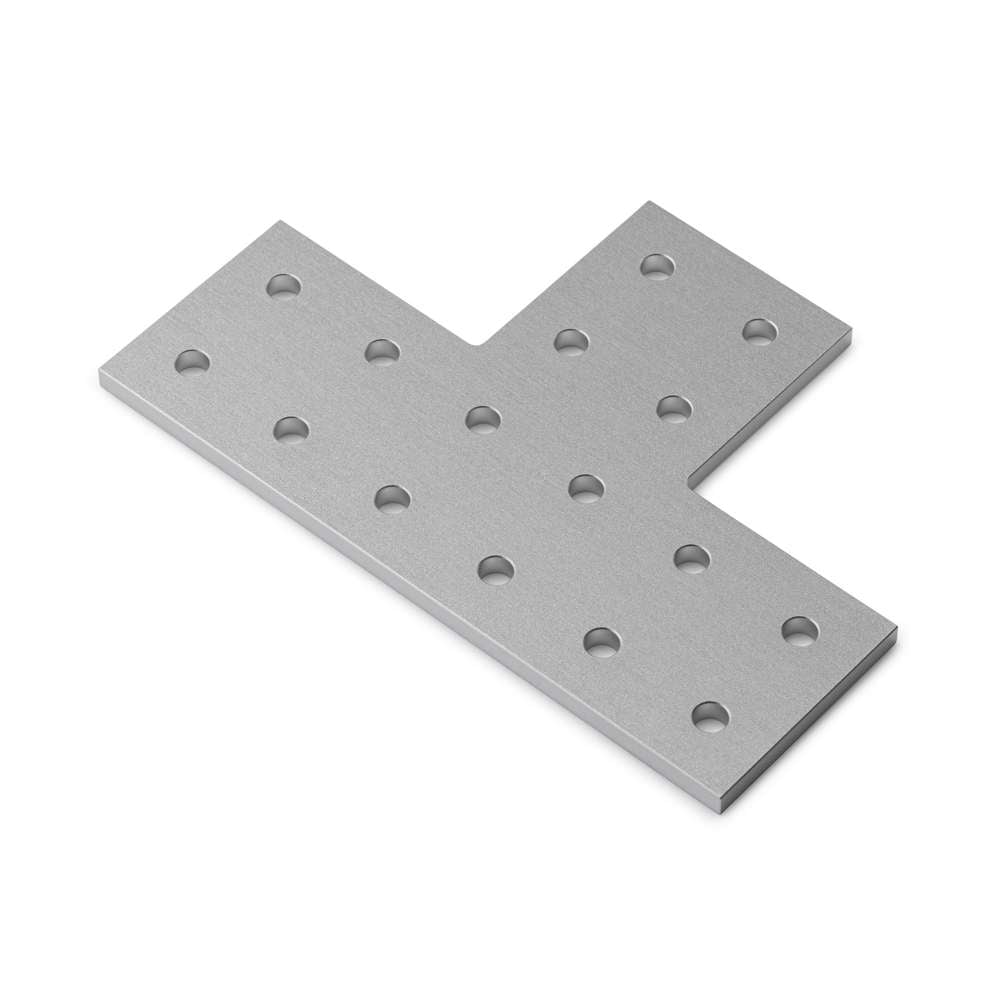

Double Slot 20 Series T Plate Connector (Aluminium)

$ 11.37

UPC: N/A Category: Thread

Aluminium Double Slot 20 Series T Plate Connectors provide a strong, stable, and aesthetically refined solution for creating secure T joints in aluminium extrusion assemblies. Designed for high shear, moment, and torsional resistance depending on configuration, these connectors offer high structural integrity of frameworks without requiring any machining. These brackets are ideal for machine enclosures, industrial workstations, and other demanding structural applications. Pros and Cons Plate Connectors for adjustable and strong aluminium extrusion assemblies. Pros Cons No Machining Required: Simplifies assembly by eliminating the need for complex modifications to the extrusion. High Shear, Moment, and Torsional Resistance: Provides maximum strength and stability for demanding applications. Adjustable: Allows for flexibility and easy reconfiguration in your design. Leaves Extrusion Slots Clear: Allows full access to slots for additional components or panels. Time Consuming: Requires additional fastening steps compared to some other connectors. Visible Fixing: Bracket and fixings remain exposed in finished assemblies. Application Plate Connectors are designed for use with 20 Series T-Slot Aluminium Extrusions to create strong and stable T connections. These plates offer excellent shear, moment, and torsional resistance, making them suitable for high-strength structural frameworks, machine enclosures, and modular assemblies. Their adaptability ensures a reliable connection in various configurations while maintaining ease of assembly and long-term durability. Unlike other corner brackets, they leave the internal extrusion slots completely clear, allowing for unrestricted mounting of panels, accessories, or additional structural components.
