Febco - 825YA-QT-FS 1 1/2 - Part of the 825YA Series

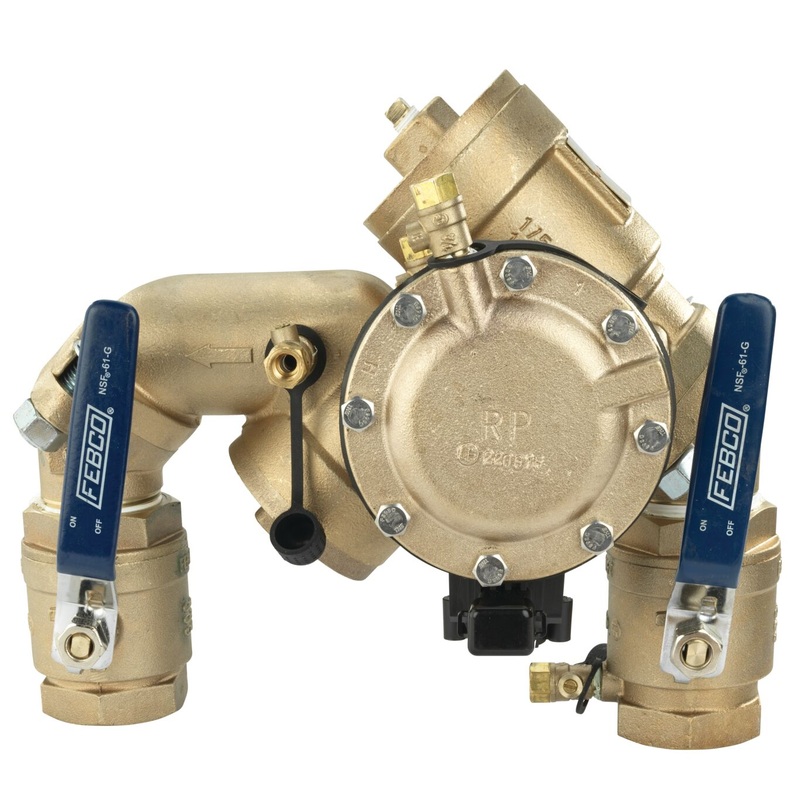

This 1 1/2 inch N shaped reduced pressure zone assembly backflow preventer prevents the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This compact integral assembly with an extremely short lay length provides versatility and simplifies new and retrofit installations which are advantageous in areas of limited space. This assembly consists of a bronze body, threaded quarter turn ball valves, angle union connections, test cocks, spring loaded Y pattern check valves, and one hydraulically dependent differential relief valve. This backflow assembly contains a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications. Features Features an integrated flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve Alert features available with add-on sensor connection kit Bronze body Modular relief valve and check valves for easy maintenance Quarter turn shutoff valves Specifications ArmorTek Technology No Backflow Preventer Type Reduced Pressure Zone Assembly Body Finish Rough Bronze Body Material Bronze Body Pattern N-Pattern or Straight Brand FEBCO Bypass No Bypass Size Does Not Apply To Product Cap And Tether Yes Disc Material Does Not Apply To Product EAN 643925581713 Elbow Fitting Yes Hazard Protection Level Health Hazard Hot And Harsh Water No Hydrant Connection No Inlet Connection Size 1 1/2 IN Inlet Connection Size-Metric 40 MM Inlet Connection Type Female Threaded Inlet Shutoff Valve Type Quarter Turn Ball Valve Inlet Thread Type NPT Lead Free No Maximum Temperature-Fahrenheit 140 Maximum Working Pressure-BAR 12.00 Maximum Working Pressure-PSI 175 Meter Type No Meter Minimum Temperature – Celsius 0.00 Minimum Temperature-Fahrenheit 32 Outlet Connection Size 1 1/2 IN Outlet Connection Type Female Threaded Outlet Shutoff Valve Type Quarter Turn Ball Valve Outlet Thread Type NPT Part Number F825GYA Polymer Coating No Pressure Operation Continuous Protection Type Backpressure and Backsiphonage Seat Material Nitrile Series 825YA Strainer No Technologies Flood Detection Specification Sheet – 825YA Specification Sheet – 825YA (French) Specification Sheet – 825YA (Spanish) Specification Sheet – Flood Sensor Connection Kit – FEBCO Specification Sheet – Flood Sensor Connection Kit – FEBCO (French) Specification Sheet – Flood Sensor Connection Kit – FEBCO (Spanish) UPC – 643925581713
